Length Of A Single Pontoon Unit 10m Flaoting Bridge Pontoon Bridge
General introduction of Length Of A Single Pontoon Unit 10m
Flaoting Bridge Pontoon Bridge
Length Of A Single Pontoon Unit 10m Flaoting Bridge Pontoon Bridge
is a kind of heavy pontoon equipment. It is proper for erecting
floating bridges MLC80 to guarantee tracked load 72t or wheel load
fewer than 83t to cross over the rivers whose present velocity is
less than 2.5m/s. Power pontoon bridge can also be used as
transporting rafts of 20t, 40t, 65t, and 85t.
A whole set of Length Of A Single Pontoon Unit 10m Flaoting Bridge
Pontoon Bridge contains of 8 interior bays (each interior bay is
equipped with 2 x OBMs), 2 ramp bays, 10 transport vehicles and
supporting equipment.
MAIN TECHNICAL DATA of Length Of A Single Pontoon Unit 10m Flaoting
Bridge Pontoon Bridge
Main size of the pontoon body
Width 8.3m
Carriageway width5 m
Available velocity of flow
Vehicle loading 2.5m/s
Bridge erection 2.5m/s
Ferry with full load 2.5m/s
Design Load MLC80
Tracked load 72t
Wheel load 83t
Pontoon shape depth 0.8m
Specifications for Power Pontoon Bridge |
|
Floating bridge |
|
Length of one complete set | 104m |
Load capacity | 72(tracked load), 83t(axle load) |
Roadway width | 5m |
Current velocity | ≤3.0m/s |
Length of a single pontoon unit | 10m |
Ramp Height | not less than 3m |
Transport vehicle of of Length Of A Single Pontoon Unit 10m
Flaoting Bridge Pontoon Bridge
Span Of One Whole Set 104m Emergency Equipment Power Pontoon Bridge
Transport vehicle is refitted by 8×8 wheeled cross-country truck,
with turning rack, mobile platform, stable support leg, hanger
frame, hydraulic system and electrical system on it.
The transport vehicle is used to fold, load and transport interior
and shore bays as well as to transport and erect gangplank.
COMPONENTS

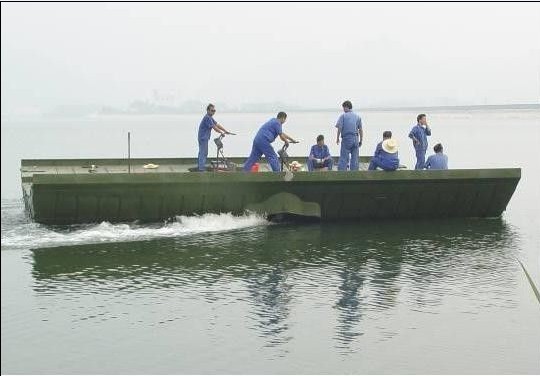

Interior bay
Interior bay is used to construct pontoon bridge and ferrying raft.
An interior bay weights 10t. It is combined by 2 bow pontoons and 2
roadway pontoons. The main size of unfolded interior bay is 10m of
length, 8.3m of width and 1.35m of height with 5m of carriage way.
Each bow pontoon of interior bay has installed one set of power
system which is made up of Outboard engine, reversed frame,
operation handle, battery, control box and oil tank.
This is China Harzone Industry Corp.,Ltd., our company was founded
in 1967,and we are a member of China State Shipbuilding Corpration
Limited(CSSC),which is the largest central state-owned shipbuilding
and military enterprise in China. As the pioneer in the research
and manufacturing of emergency and rescue equipment in China,
Harzone is the first company from the emergency industry listed in
the stock exchange.
China Harzone dedicates itself to the following fields:
Design and manufacturing of military bridges and emergency rescue
equipment
Design,manufacturing and installation of various kinds of steel
bridges and steel structures
Research and re-fitting of special-purpose vehicles and equipment
Engineering contracting
Import and Export trading business
Harzone products have been exported to more than 40 countries and
regions around the world and own a good reputation from
international client.Moreover,China Harzone has been listed in the
state emergency purchasing system and also the largest qualified
rescue machinery supplier of the United Nations Emergency
Procurement.
Please feel free to contact with us if you have any question.
