Guarantee Tracked Load 72t Or Wheel Load Fewer Than 83t To Cross
Over The River Floating Bridge Mobile Platform
General introduction of Guarantee Tracked Load 72t Or Wheel Load Fewer Than 83t To Cross
Over The River Floating Bridge Mobile Platform
A whole set of Guarantee Tracked Load 72t Or Wheel Load Fewer Than
83t To Cross Over The River Floating Bridge Mobile Platform
contains of 8 interior bays (each interior bay is equipped with 2 x
OBMs), 2 ramp bays, 10 transport vehicles and supporting equipment.
Guarantee Tracked Load 72t Or Wheel Load Fewer Than 83t To Cross
Over The River Floating Bridge Mobile Platform is a kind of heavy
pontoon equipment.it also be used as transporting rafts of 20t,
40t, 65t, and 85t.
Guarantee Tracked Load 72t Or Wheel Load Fewer Than 83t To Cross
Over The River Floating Bridge Mobile Platform proper for erecting
floating bridges MLC80 to guarantee tracked load 72t or wheel load
fewer than 83t to cross over the rivers whose present velocity is
less than 2.5m/s.
MAIN TECHNICAL DATA of Guarantee Tracked Load 72t Or Wheel Load Fewer Than 83t To Cross
Over The River Floating Bridge Mobile Platform
Specifications for Power Pontoon Bridge |
|
Floating bridge |
|
Length of one complete set | 104m |
Load capacity | 72(tracked load), 83t(axle load) |
Roadway width | 5m |
Current velocity | ≤3.0m/s |
Length of a single pontoon unit | 10m |
Ramp Height | not less than 3m |
COMPONENTS
Interior bay

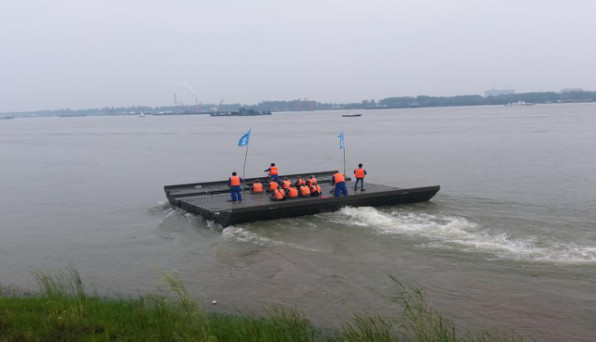

Interior bay is used to construct pontoon bridge and ferrying raft.
An interior bay weights 10t. It is combined by 2 bow pontoons and 2
roadway pontoons. The main size of unfolded interior bay is 10m of
length, 8.3m of width and 1.35m of height with 5m of carriage way.
Detailed data of OBM
| Item | Data |
| Type | YAMAHA85AETL |
| No of cylinder | 3 |
| Displacement (cm3) | 1140 |
| Diameter and stroke (mm) | 82×72 |
| output (kw/hp) | 62.5/85.0 |
| Compress rate | 5.1 |
| Transmission ratio | 13:26(2.0) |
| Operation type | Line remote control |
| Oil supply | Pre-mix |
| Oil tank capacity | 35L |
China Harzone is one of the most professional “pontoon bridge”
manufacturers all over the world and we always make our effort to
provide our best service and products to our clients. So far, over
40 countries in Asia, Africa and Latin America have purchased our
products, including Myanmar, Thailand, Peru, Ecuador, Sudan,
Pakistan, Laos and so on.
Before offering the quotation, we need to know the exact usage
condition so that we can propose a proper technical specification.
Hereon, pls kindly supply the following information as detailed as
possible:
- The bridge location
- About the load requirement, we need to know the vehicle axle
load/tracked load. better pls send pictures or drawings of the
heaviest vehicle.
- Length and width of the bridge.
- Traffic directions: one way or two way.
- Number of roadway (Four, six or other)
- Water speed/water depth/Water level variation.
- Sea condition description (Beaufort scale)
- Local climate condition (temperature, wind speed, etc.)
- Soil geography of water bottom and embankment.
- Bank form (Steep bank, Slope, or gradient)
- Life service requirement ( for how many years the bridge is
intended for use)
- Quotation terms (EXW or other)
- Better if there are site pictures can be provided.
Please feel free to contact with us if you have any questions.
Looking forward to your reply.
