    Emergency Assembled Mechanized Bridge Curb Weight Of Erection Vehicle 33t

    Ask Lasest Price
    Brand Name : Harzone
    Payment Terms : According to detailed order
    Delivery Time : negotiation
    • Product Details
    • Company Profile

    Emergency Assembled Mechanized Bridge Curb Weight Of Erection Vehicle 33t

    Curb Weight Of Erection Vehicle 33t Emergency Mechanized Bridge


    Description:

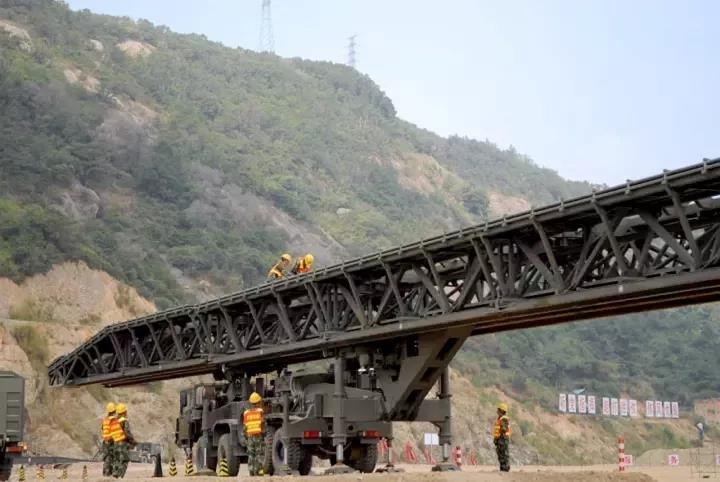

    Curb Weight Of Erection Vehicle 33t Emergency Mechanized Bridge is a set of mechanized bridge with big single span accepted by vehicle. One complete set of equipment consists of one erection vehicle and six transport vehicles with bridge bays, which can be assembled into an emergency bridge rapidly to ensure all sorts of vehicles to go across quickly.


    Curb Weight Of Erection Vehicle 33t Emergency Mechanized Bridge possesses the feature of decent flexibility, large single span, humble structure, quick erection, high mechanization and less manpower. Moreover, it has the benefits of suitable transportation and favorable adaptability of bank.


    NoItemData
    1Curb weight of erection vehicle33t
    2Curb weight of transportation vehicle21t
    3Dimension of erection vehicle (L×W×H )13.6m×3.2m×3.47m
    4Dimension of transportation vehicle (L×W×H )12m×3.4m×3.5m
    5Load capacity
    Tracked load60T
    Wheeled load13T
    6Life time10000 times
    7Erection length17m,25.5m,34m,42.5m,51m
    8Erection width4m
    9Negotiating depth:±3m
    10Erection maximum longitudinal gradient10%
    11Erection maximum transverse gradient5%
    12Erection time (complete bridge)90min
    13Retrieval time (complete bridge)90min
    14Operator(not including driver)3~4
    15Ambient temperature-41℃~+50℃

    Curb Weight Of Erection Vehicle 33t Emergency Mechanized Bridge is used to fast erect a temporary bridge of 17-51m, 4m wide to ensure all sorts of vehicles with the tracked load of up to 60t or an axle load of up to 13t to go across obstacles including rivers and dry ditches.
