Emergency Rescure Negotiating Depth ±3m Mechanized Bridge
Description of Emergency Rescure Negotiating Depth ±3m Mechanized Bridge :

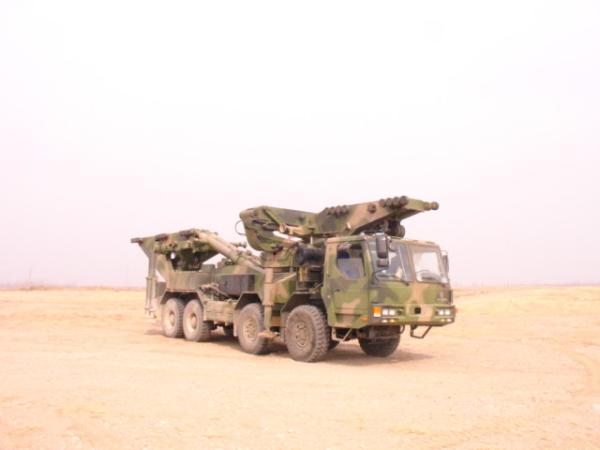

Emergency Rescure Negotiating Depth ±3m Mechanized Bridge is a set of temporary large span bridge equipment carried by erection
vehicle, accomplishing the erection and retrieval operation by the
erection vehicle,which can be assembled into an emergency bridge rapidly to ensure
all sorts of vehicles to go across quickly.
Emergency Rescure Negotiating Depth ±3m Mechanized Bridge is used to fast erect a temporary bridge of 17-51m, 4m wide to
ensure all sorts of vehicles with the tracked load of up to 60t or
an axle load of up to 13t to go across obstacles including rivers
and dry ditches.
Technical data of Emergency Rescure Negotiating Depth ±3m
Mechanized Bridge:
Curb weight of erection vehicle (including 3 men): 33t
Curb weight of transportation vehicle: 21t
Dimensions of erection vehicle
(length×width×height):13600mm×3200mm×3470mm
Dimensions of transportation vehicle
(length×width×height):12000mm×3400mm×3500mm
Design loading: tracked loading 60t
Wheeled (load on axle) 13t
Max. tracked loading: ≤ 15km/h
Max. wheeled loading: ≤ 30km/h
Design using longevity (loading across) 10000 times
Erection length : 17m,25.5m,34 m,42.5 m,51 m
Erection width: 4m
Negotiating depth: ±3m
Erection maximum longitudinal gradient: 10 %
Erection maximum transverse gradient : 5%
Erection time (complete bridge) 90min
Retrieval time (complete bridge) 90min
Operator: 3~4 men (not including drivers of transportation
vehicles)
Ambient temperature: -41℃~＋50℃
Max. speed: 80km/h
Min. turning dia: 24m
Min. ground clearance: 300mm
Max. fording depth: 700mm
Max. gradeability: 60%
Max. continued mileage: 650km
Main features of Emergency Rescure Negotiating Depth ±3m Mechanized
Bridge:
1Excellent cross country performance: Cross country chassis (8×8
erection vehicle, 6×6 transportation vehicle)
2 Large single span: max. single span reaches 51m
3 Less composition unit: one erection vehicle, six transportation
vehicle
4 Fast erection: 90min (To erect a 51m bridge)
5 High mechanization level, low labor intensity: using remote
control operation
6 Less operators: 3-4(not including drivers)
Emergency Rescure Negotiating Depth ±3m Mechanized Bridge is used
to fast erect a temporary bridge of 17-51m, 4m wide to ensure all
sorts of vehicles with the tracked load of up to 60t or an axle
load of up to 13t to go across obstacles including rivers and dry
ditches.
