Load 13t Steel Army Pontoon Bridge Anti Corrosion Coatings
Army Pontoon Bridge Description:
pontoon bridge, floating bridge, used primarily but not invariably
for military purposes. See also military bridge.
Composition of Army Pontoon Bridge :
One complete set consists of 14 interior bays, 2 ramp bays, 5
erection motor boats and 21 refitted cross-country transporters.
Army Pontoon Bridge Specifications:
| carriageway width | 6.5m |
| suitable water speed | 2.5m/s |
| load capacity | |
| max track load | 60t |
| max axle load | 13t |
| interior bay weight | 7t |
| ramp bay weight | 6.7t |
| inter pontoon outline dimension(with transporter) | 9620×3202×3679mm |
| shore pontoon outline dimension(with transporter) | 8585×3263×3668mm |
| chassis | 6*6 |
| floating bridge traffic capacity | 60t floating bridge |
| operator | 3 operators for each interior pontoon 4 operators for each shore pontoon 1 driver for each transporter 2 drivers for each motor boat |
Features

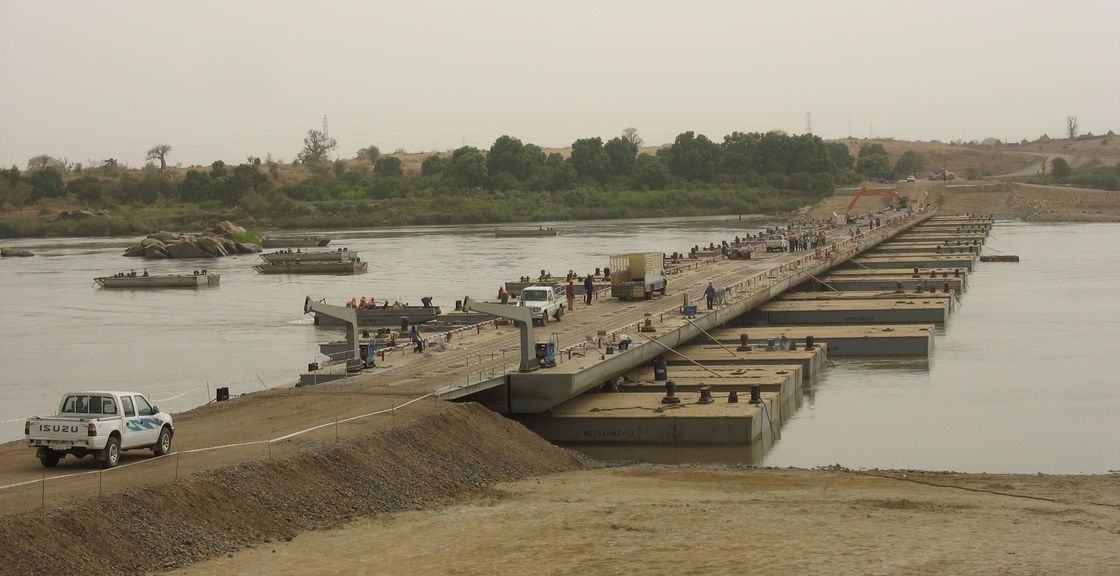

The floating bridge and ferry raft, constructed from the
tight-boxes integrating pontoons.
Easy conversion between floating bridge and ferry raft
A wide roadway used as either a single-lane for heavy loads or a
double-lane for light loads.
No wharf construction required in raft crossing, its accompanied
ramps facilitating loading and unloading after mooring.
FAQ
1,How about quality control of your company?
Manufacturing process for steel bailey bridge in China,who has
engaging in this line for over 50 years with an International
Quality System Certification of ISO 9001:2015 and as cooperation
partner with the research institutions of the People’s Liberation
Army. And our products have been exported to more than 40 countries
and regions in Asia,Africa,Latin America and Oceania.
2,Are you a factory or a trade company?
We are a factory with 8 production lines and various machines to
fabricate steel bridge parts,pontoon bridges,mechanized bridges and
other products.Also, we have get the exporting license to devote
ourselves into global market.
3,Where is your loading port?
Shanghai Port,Nanjing Port,Tianjin Port.
