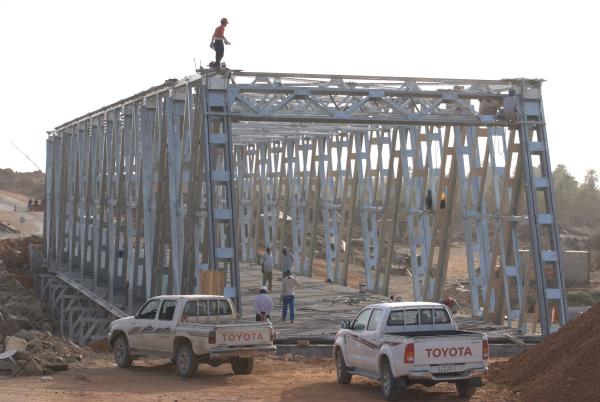

Steel Truss Bridge Metal Truss Bridge Pedestrian Truss Bridge

Steel Truss Bridge Metal Truss Bridge Pedestrian Truss Bridge is a kind of down through structural assembled bridge. It generally be used for permanent bridge, also can be used for temporary bridge as construction. The bridge deck is usually made of reinforced concrete and asphalt concrete pavement. Commonly the design span is 36m-100m. The bridge deck is usually made of reinforced concrete and asphalt concrete pavement.

Product feature

Its biggest feature is that the upper chord, the lower chord, the inclined bar, the upper flat coupling, the lower flat coupling, etc., which are the main force components, are made of rolled angle steel or channel steel.

Main technical data

This type of bridge using AASHTO highway load specifications, the design load is for two-lanes or four-lanes HS20-44 vehicle load; within the roadway width of 7.5m-15m, clear width sidewalk no less than 1.8m.

Advantages

The number of components is small and the number is larger than that of the modular bridge. The single component is light in weight and easy to manufacture and transport.

Application
Beam bridge,arch bridge,rigid frame bridge,cable-stayed bridge,suspension bridge. passenger foot-bridge

China Harzone Industry Corp., Ltd. ,built in 1967, is the subsidiary of China State Shipbuilding Corporation Limited(CSSC) and one military enterprise whose conservation was given priority status in China.


Harzone Industry has the qualification of design, manufacturing and installing various steel products: emergency mechanized bridges; temporary and permanent steel bridges such as Pontoon Bridge, Bailey Bridge, Truss Bridge, Suspension Bridge, Girder Bridge and Cable Stayed Bridge; steel structures for industrial workshops, commercial buildings and habitation buildings; special equipment such as power transmission tower, television tower, radio tower, microwave tower, communication tower, and railway steel pole.


Harzone Industry has the first-grade steelwork manufacturing qualification; has the ISO9001-2000 quality system, the ISO14001-2004 Environmental Management System, and has GB/T28001-2001 Occupational Safety Management System Certification.


Harzone Industry owns two Production Bases, one Research & Design Department in Hubei province, and one subsidiary company in Beijing. Our products have been exported to over 40 countries in Asia, Africa and Latin America.
